Mobile Forensic Hardware

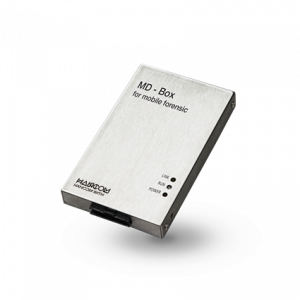

MD-BOX

MD-BOX is the forensic hardware for extracting data directly from the mainboard of mobile device using JTAG interface.

Learn More
MD-READER
MD-READER is the forensic hardware for extracting data directly from the memory chip detached from the mainboard of mobile phone.
Learn More
MD-MR

MD-MR(Memory Removal) is the package of forensic hardware devices to detach the memory chip from the mainboard of mobile phone.

Learn More
MD-BOX
Mobile forensic hardware for extracting data directly from the board using JTAG interface

MD-BOX is the mobile forensic hardware for extracting data directly from the mainboard using JTAG interface. When the mobile device has damage on the external parts, but the mainboard still works, the examiner can connect the mainboard to MD-BOX through JTAG interface. Then, the data can be extracted at the menu of JTAG Extraction in MD-NEXT program.

Download Brochure
Request a quote
Product Highlights
Product components
  • MD-BOX Hardware 1 EA
  • Probe connector 1 EA
  • Power adapter 1 EA
  • USB cable 1 EA
  • Warranty 1 Year
  • MD-Carrier (Option)
  • FPCB Cable Suite (Option)
Hardware Specification
  • CPU: ARM9
  • RAM: 64Mbytes
  • Input Voltage: DC 5V/2A
  • JTAG Clock: 1KHz ~ 50 MHz
  • Connector Type: 20 Pin Connector
  • Target Voltage: 1.8V ~ 5.0V
  • Size: 75 x 120 x 18mm
Key Features
Data extraction from mainboard via JTAG interface
  • - Forensic hardware for reading data directly from the mainboard of the mobile device using JTAG interface
Advanced extraction features
  • - Supports auto-scanning of partitions
  • - Supports the selected partition extraction
  • - Supports extraction without reference voltage
  • - Supports DMA (Direct Memory Access) type extraction
  • - Supports resumption of extraction from the halted point
Mobile CPU support
  • - MSM6XXX, MSM7XXX, APQ, Exynos, OMAP, Cortex-A, Xscale series CPU family
Excellent extraction performance
  • - Max. 1MB/sec extraction performance
Assurance of evidence data integrity
  • - Supports write-protection of the evidence data
  • - Supports 10 hash algorithms such as MD5 and SHA256
JTAG cable support
  • - Supports FPCB connector cable sets, MD-Cable Suite
  • - Supports manual connection by soldering work
Image file save using MD-NEXT
  • - Saves data as MDF image file with MD-NEXT software
MD-BOX Demo
MD-READER
Digital forensic hardware for extracting data from Chip-off memory

MD-READER is the forensic hardware for extracting data directly from the flash memory detached from the mainboard of a digital device. The detached flash memory needs to be mounted into one of the memory sockets bundled with MD-READER. Then, the data extraction can be done at Chip-off menu in MD-NEXT program

Download Brochure
Request a quote
Product Highlights
Product Components
  • MD-READER Hardware 1 EA
  • Sockets of eMMC or eMCP 5 EA (5+ sockets as option)
  • Universal SD memory card socket 1 EA
  • Power adapter 1 EA
  • USB cable 1 EA
  • Monthly update license for new models
  • Warranty: 1 Year
Hardware Specification
  • CPU: Samsung S5PV210
  • RAM: DDR256M
  • Memory: NAND 512M
  • Input Voltage: DC 5V
  • Size: 110x140x35mm
Key Features
Data extraction from Chip-off flash memory
  • - Supports data extraction from the flash memory of mobile phones or digital device heavily damaged by fire, water, or external shock.
Supports 10 types of eMMC/eMCP memory sockets
  • - eMMC memory sockets (5 Types)
  • - BGA153 eMMC - 11.5x13x0.5mm
  • - BGA169 eMMC - 12x16x0.5mm
  • - BGA169 eMMC - 14x18x0.5mm
  • - BGA100 eMMC - 14x18x1.0mm (Option)
  • - BGA136 eMMC - 10x10x0.5mm (Option)
eMCP memory sockets (5 Types)
  • - BGA186 eMCP - 12x16x0.5mm
  • - BGA221 eMCP - 11.5x13x0.5mm
  • - BGA162 eMCP - 11.5x13x0.5mm (Option)
  • - BGA254 eMCP - 11.5x13x0.5mm (Option)
  • - BGA529 eMCP - 15x15x0.5mm (Option)
Universal SD memory card socket
  • - Supports SD Card, Mini SD Card, Micro SD Card
Selective data extraction
  • - Supports auto-scanning of partitions
  • - Supports extraction of the selected partition
Excellent extraction performance
  • - Max. 12MB/sec extraction performance
Assurance of evidence data integrity
  • - Supports write-protection of the evidence data
  • - Supports 10 hash algorithms such as MD5 and SHA256
Image file save with MD-NEXT
  • - Saves data as MDF image file with MD-NEXT software
MD-READER Demo
MD-MR
Package of digital forensic hardware devices for detaching memory chips from the mainboard of mobile phone or other digital devices

MD-MR is the package of hardware devices for detaching memory chips from mainboard of a mobile phone or a digital device. When the device is severely broken, burnt, or drowned, MD-MR is used before Chip-off forensics. MD-MR includes 5 flash memory sockets for MD-READER, heat blower, soldering station, fume extractor, microscope with optional components of mobile device dryer, rework system and mobile device safety bo

Download Brochure
Request a quote
Product Packages
Package basic components
  • 5 flash memory sockets for MD-READER 1 SET
  • Heat blower for disassembling work 1 EA
  • Soldering Station 1 EA
  • Fume Extractor 1 EA
  • Microscope with lighting 1 EA
  • Digital Microscope for PCB inspection 1EA
Package option components
  • Rework station 1 EA (Option)
  • Mobile device dryer 1 EA (Option)
  • Mobile device safety box 1 EA (Option)
  • Warranty 1 Year
MD-MR Standard devices

5 flash eMMC/eMCP memory sockets for MD-READER

Heat Blower for Diassembly Work

BGA Reballing Kit

Hot Plate for Reballing

Digital Microscope for PCB inspection 1EA

MD-MR Optional devices

5 flash eMMC/eMCP memory sockets for MD-READER

Rework station for small PCB Rework that optimized for mobile phones.

5 flash eMMC/eMCP memory sockets for MD-READER

Rework station for small PCB Rework that optimized for mobile phones.

Specification
Product Highlights
  • - Essential devices for manual memory removal
  • - Optional automatic rework machine, mobile device dryer, and safety box
MD-MR Standard devices
  • - 5 flash eMMC/eMCP memory sockets for MD-READER
  • - Heat blower for disassembling work
  • - Soldering station for manual soldering
  • - Fume extractor for soldering work
  • - Microscope - Zoom Stereo, 3.5X~180X, Lighting equipment
  • - Digital microscope with HDMI/USB for PCB inspection
MD-MR Optional devices
Rework Station
  • - Rework station for small PCB (BK-350S)
  • - Optimized for mobile phone rework
Mobile device and PCB Dryer
  • - Dryer for PCB board and small digital device (RG-202)
  • - Convective drying maintains a stable temperature inside
  • - Safe circuit to prevent the override of the heater
Mobile device Safety Box
  • - Mobile device storage for smartphone and tablet
  • - Battery charge during storage
  • - Sterilization
  • - Digital locking system
MD-MR Demo
